CBN Roughing and Finishing Solution for Planet Carrier Machining

UHD provides a CBN insert machining solution for ductile iron and alloy cast steel planet carriers, covering face turning, bearing bore finishing, register machining and oil groove forming. The process-based tool configuration supports stable cycle times, controlled geometry and consistent batch production.

Process the critical functional surfaces as a coordinated system

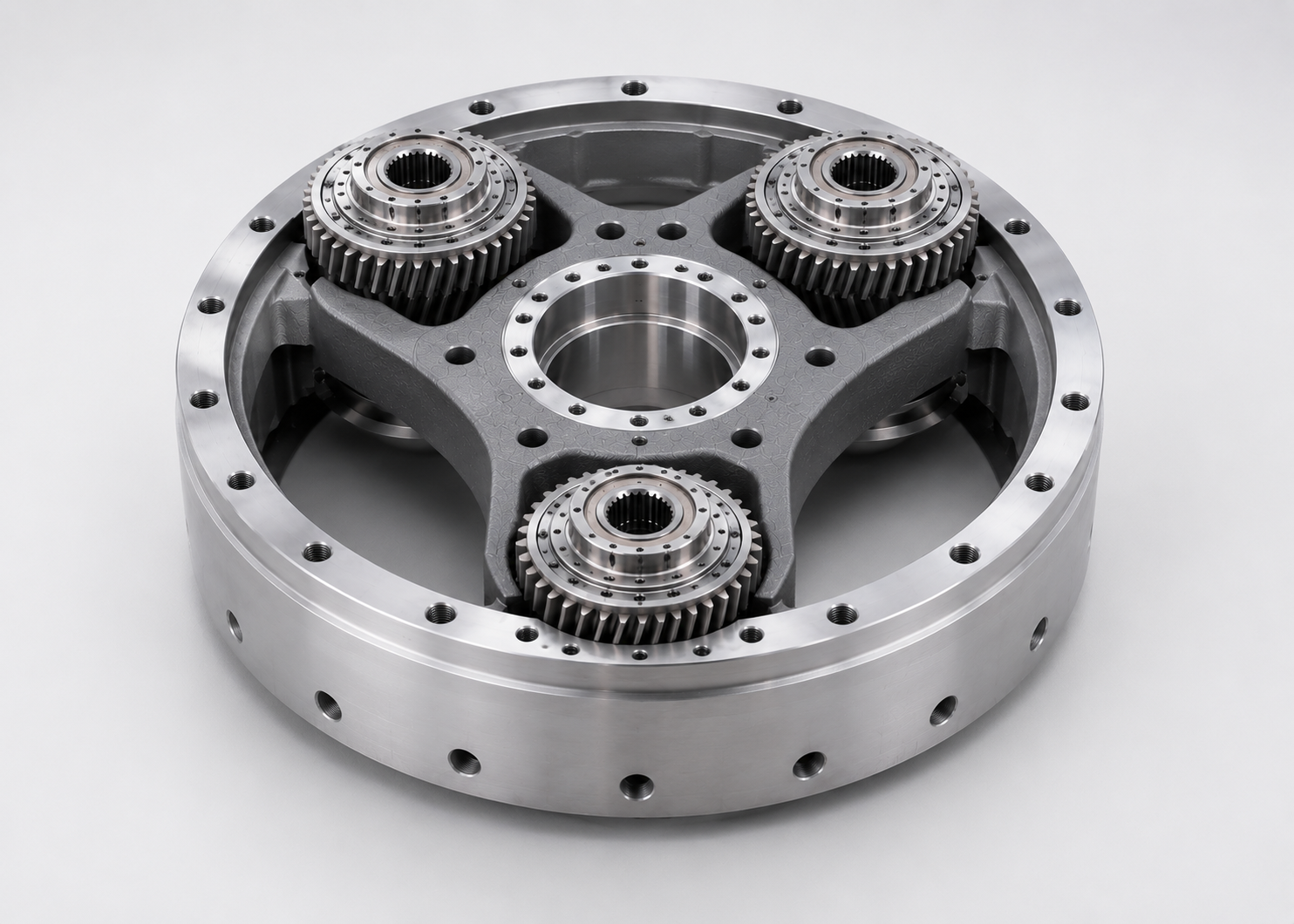

Planet carriers are high-volume transmission components commonly made from ductile iron or alloy cast steel. Their critical features include large faces, bearing bores, registers, lubrication grooves, and annular sealing grooves.

Typical machining challenge: casting allowance variation and intermittent cutting can affect roughing stability, while bearing fits, bore geometry, face flatness, and groove consistency require controlled finishing.

Solution Logic: Separate Material Removal, Geometry Control, and Groove Forming

The UHD planet carrier machining solution uses a roughing-and-finishing CBN insert system. Rather than requiring one tool to handle every condition, the process assigns impact-resistant roughing, precision finishing, bore control, and profile forming to dedicated CBN tool configurations. This supports a more predictable machining route for B2B production introduction and non-standard parameter optimization.

1. Integral Brazed CBN Insert Series — Rough Face Turning & Bearing Bore Stock Removal

Used for large-face roughing and bearing bore rough machining. It prioritizes stable stock removal under variable casting allowance, helping isolate impact and wear from subsequent finishing operations.

2. Coated CBN Insert — Register and Bearing Seat Finish Turning

Applied to bearing installation surfaces and registers where dimensional consistency and surface quality affect assembly fit. The finishing stage is configured to reduce size drift and unstable surface marks.

3. Coated CBN Insert — Precision Boring for Bearing Bores

Used in finish boring to control bearing bore size, cylindricity, and coaxiality. This approach addresses bore geometry through the machining operation instead of relying on repeated compensation cuts.

4. Full Face CBN Insert Series — Finish Face Turning as an Alternative to Grinding

For large end-face finishing where flatness and throughput must be balanced. The process can support turn-to-grind replacement or reduce the remaining grinding allowance, subject to part requirements and machine conditions.

5. CBN Grooving Insert Series — Oil Groove and Annular Seal Groove Forming

Dedicated grooving geometry supports more consistent groove width, groove bottom, and edge condition for lubrication and sealing features, especially where interrupted cutting can increase chipping risk.

Operational Value for Batch Planet Carrier Production

Controlled Cycle Time Roughing is assigned to efficient stock removal, while finishing avoids unnecessary corrective cuts.

Stable Functional Geometry Dedicated finishing and boring steps focus on fits, bore form, coaxiality, and face quality.

Reduced Process Complexity Turn-to-grind strategies may reduce grinding work or grinding allowance where process validation permits.

Non-Standard Adaptation UHD can optimize grade, edge preparation, geometry, and tool structure around machine rigidity, cutting mode, allowance, and target tolerance.

UHD solution definition: a coordinated CBN tooling route for ductile iron and alloy cast steel planet carriers, designed around rough stock removal, precision control of bearing-related features, finish face turning, and dedicated groove forming. Henan UHD Ultrahard Tools Co., Ltd supports CBN/PCD tool selection, non-standard tooling development, application guidance, and tool regrinding services for industrial machining programs.
