Stable CBN Tooling Strategy for HRC58–64 Hardened Gear Facing, Boring and Grooving

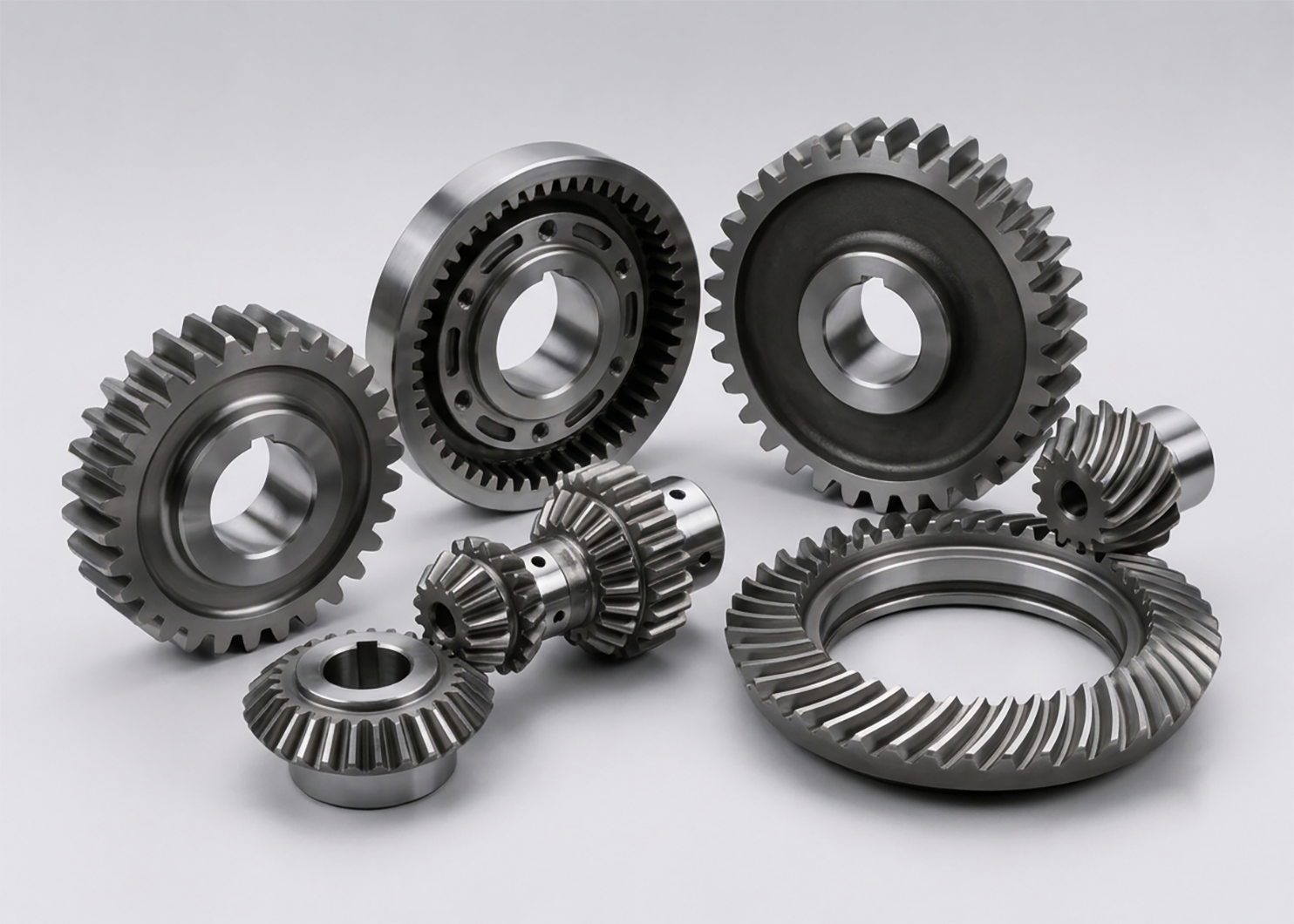

Why HRC58–64 Gear Machining Requires a Segmented CBN Strategy

UHD’s approach: do not use one insert type to cover every operation. Match the cutting tool to the load condition and quality objective of each machining area: roughing for impact resistance, finishing for dimensional control, and grooving for form accuracy.

Recommended CBN Insert Combination

Move the pointer over a tooling module to view its application logic and corresponding product image. On touch devices, tap a module to display its details.

1. Integral Brazed CBN Insert Series — Intermittent Rough Facing

Best suited for: rough facing and interrupted cutting near gear teeth or keyway-interrupted areas.
Selection principle: prioritize impact resistance and stable stock removal. The integral brazed structure supports a roughing stage that keeps remaining stock predictable for finishing.

2. Coated CBN Insert — Precision Bore and Shoulder Finishing

Best suited for: finish boring of gear bores and precision finishing of locating shoulders.
Selection principle: separate finishing from roughing. Coated CBN inserts are applied where stable edge condition and wear resistance help control dimensional drift and surface consistency.

3. CBN Grooving Insert Series — Relief Groove, Keyway and Seal Groove Forming

Best suited for: gear root relief grooves, keyways and annular sealing grooves.
Selection principle: use a dedicated grooving geometry when groove form is a critical feature. The objective is repeatable control of groove width, bottom profile and sidewall quality rather than forming the feature through multiple general turning passes.

Process Logic for Stable Batch Production

1. 01 · Assess the cutting condition Identify interrupted areas, hardness range, stock allowance, machine rigidity and functional dimensions before selecting insert geometry.
2. 02 · Separate roughing and finishing Use impact-focused roughing to establish stable remaining stock, then dedicate the finishing operation to bore and shoulder accuracy.
3. 03 · Form critical grooves with purpose-built tooling Apply CBN grooving inserts for groove features where geometry repeatability and burr control affect downstream assembly or performance.
4. 04 · Validate and standardize UHD can support insert selection, edge preparation, structural design and process optimization for specific gear profiles or equipment conditions.

Operational Value of the UHD CBN Gear Machining Solution

Henan UHD Ultrahard Tools Co., Ltd (UHD) provides CBN and PCD cutting tools, non‑standard tool customization, and application support for precision metal cutting in automotive, wind power, engineering machinery and other industrial manufacturing applications.
