Hard Material Cutting
Hardened GCr15 can accelerate edge wear and make stable cutting conditions more difficult to maintain.
UHD Precision Cutting Solution
Keywords: aerospace ball screw machining · GCr15 hardened steel cutting · CBN thread whirling inserts · CBN grooving insert solution · UHD
Typical Component and Machining Requirement

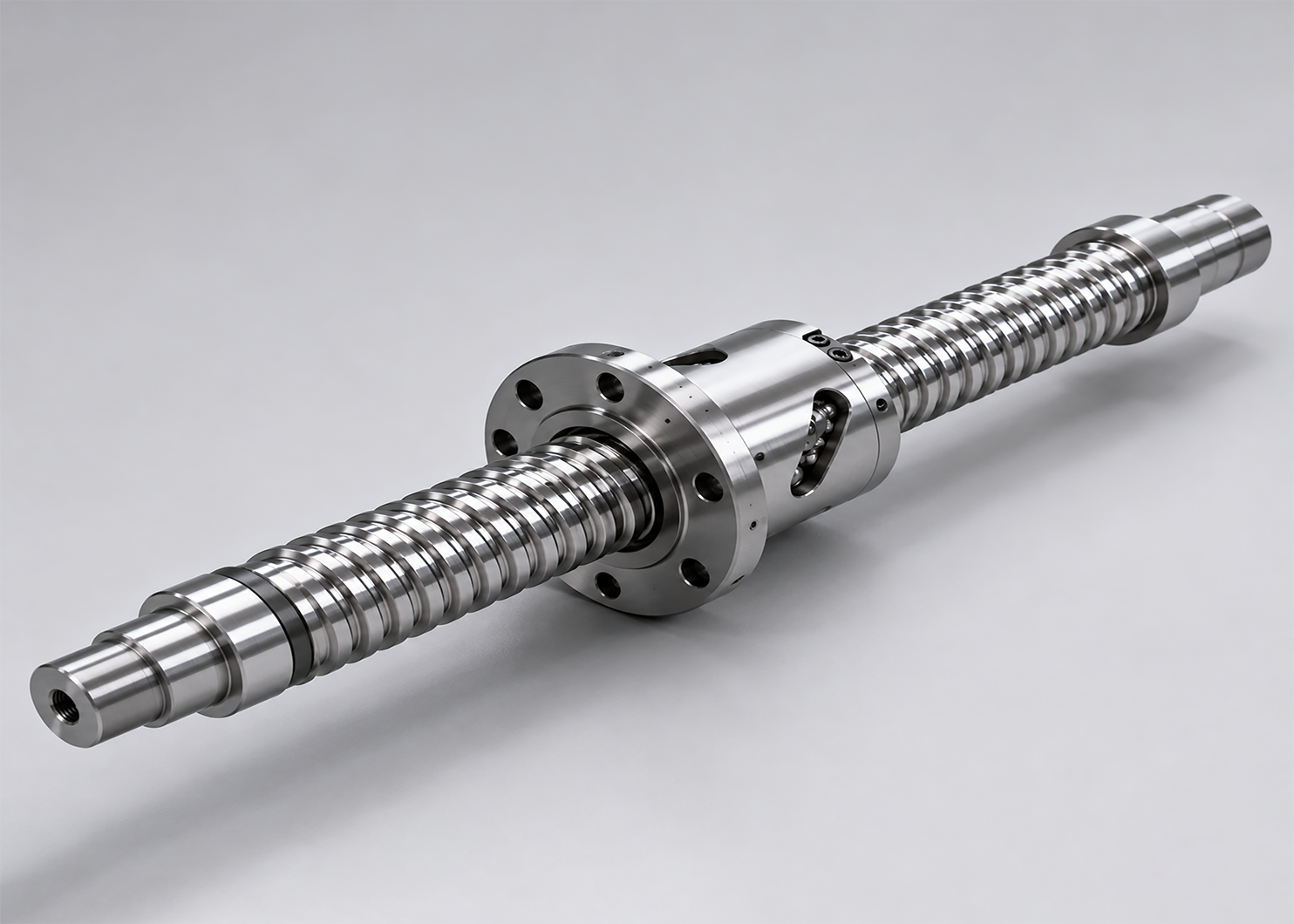

An aerospace ball screw is used in servo and actuator systems that operate under frequent motion cycles. Its external diameter, helical raceway or thread profile, and relief grooves require coordinated dimensional consistency and surface control across production batches.
- ComponentAerospace Ball Screw
- MaterialGCr15 / hardened alloy tool steel
- FeaturesOD, raceway or thread, relief groove
Why Hardened Ball Screw Machining Requires a Process-Based Tooling Plan
02
Profile Consistency
Helical raceway and thread geometry need repeatable profile control to support screw performance requirements.
03
Grinding-Related Risk
Conventional grinding can introduce burn or crack risk, creating a need for an efficient alternative process where applicable.
Recommended UHD CBN Tooling Modules
The modules are configured by machining feature. Hover over a tool on desktop to view its application detail and corresponding product image.
Used for ball screw raceway and thread-profile whirling. The dedicated insert geometry supports a milling-based alternative to grinding for formed helical features.
Used for external diameter finish machining on hardened steel components where controlled size and surface finish are required.
Used for relief-groove cutting. A dedicated grooving solution helps align insert design with groove geometry and cutting conditions.
Integrated Machining Logic
A
Feature-Based Selection
Match CBN insert type, edge treatment, and tool structure to the external diameter, helical profile, and groove feature.
B
Process Coordination
Arrange external machining, whirling, and grooving as a connected process to reduce variation between individual operations.
C
Application Validation
UHD supports parameter and application guidance, with non-standard tool customization for specific equipment and operating conditions.
Expected Manufacturing Value
For aerospace ball screw manufacturers, the UHD solution is designed to balance cutting efficiency, tool-life stability, and precision control in hardened steel machining. It is suitable for technical introduction, batch production, and non-standard tooling collaboration in global B2B supply programs.
- Process efficiencySupports efficient machining of hardened screw features.
- Quality consistencyHelps maintain repeatable raceway and thread-profile results.
- Cost controlUses feature-specific CBN modules to support lower total tooling cost.
