Automotive wheel hub units require dependable finishing of the raceway, a critical surface that influences bearing performance and vehicle operating stability. For 65Mn hardened steel at HRC62, small-allowance hard turning places demanding requirements on insert wear resistance, cutting-edge consistency, and process stability over long automated production runs.
Henan UHD Ultrahard Tools Co., Ltd. (UHD) developed the UPN306C05 CBN insert solution for this continuous dry-finishing application. In production validation, it maintained the existing 52-second cycle time while extending tool life from 100 to 130 pieces per cutting edge compared with the referenced European-brand CBN insert under the same cutting conditions.
Wheel hub unit raceways are precision finishing areas. After heat treatment, the HRC62 material condition and the controlled finishing allowance make the process sensitive to edge wear and cutting instability. In automated production, a tool that produces acceptable results on an individual part may still create operational risks if its performance changes during continuous machining.
A depth of cut of approximately 0.15 mm requires stable material removal to help avoid visible tool marks and surface variation.
Short insert life can interrupt automated cycle continuity and increase machine downtime associated with tool replacement.
As cutting edges wear during long runs, controlling dimensional variation becomes increasingly important for batch production.
Manufacturers may seek to reduce reliance on grinding while maintaining the precision and stability required for raceway finishing.

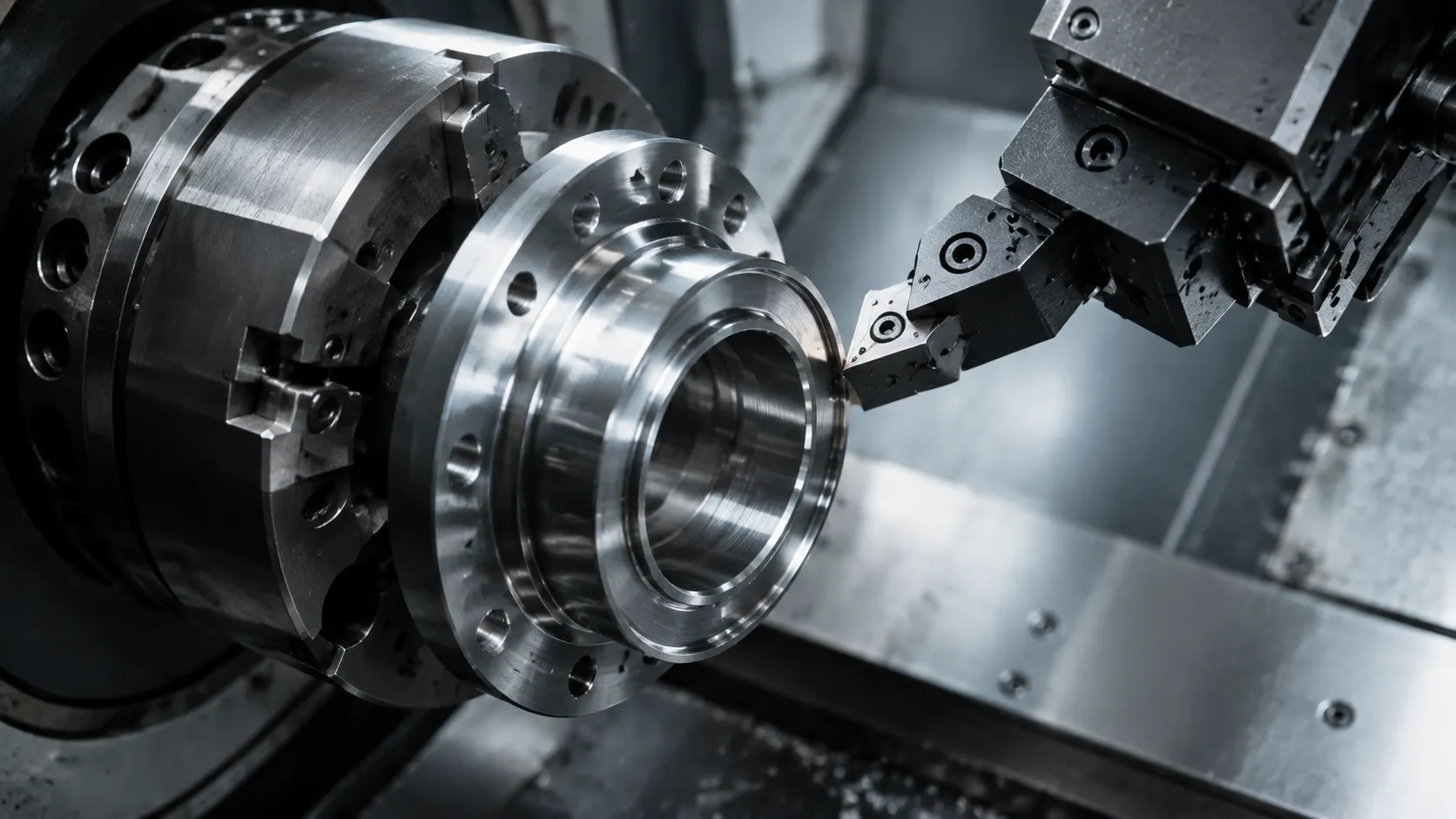

The UHD UPN306C05 solution was applied to continuous, dry precision finishing of an automotive wheel hub unit raceway. The following conditions define the validated application context.
| Item | Application Detail |
|---|---|
| Industry | Automotive manufacturing |
| Workpiece | Wheel hub unit |
| Material and hardness | 65Mn hardened steel, HRC62 |
| Machining area | Raceway |
| Machining mode | Continuous cutting, dry finishing |
| CBN insert | UHD UPN306C05, VNGA160408 |
For this wheel hub hard-turning process, UHD matched the UPN306C05 CBN grade and VNGA160408 insert geometry to the finishing requirement. The selected parameters were intended to balance controlled small-allowance removal, surface quality, and repeatable cutting performance in a continuous production environment.
Under the same cutting parameters, UHD compared the UPN306C05 insert with a European-brand CBN insert. Both tools maintained a 52-second machining cycle per piece. The observed difference was in tool life per cutting edge.
| CBN Insert | Cutting Speed | Cycle Time | Tool Life per Edge |
|---|---|---|---|
| European-brand CBN insert | 207 m/min | 52 s/piece | 100 pieces/edge |
| UHD UPN306C05 | 207 m/min | 52 s/piece | 130 pieces/edge |
At the same 52-second cycle time, the UHD UPN306C05 CBN insert achieved 130 pieces per edge, compared with 100 pieces per edge for the referenced insert—an approximately 30% increase in tool life in this validated application.
The result of a CBN hard-turning process depends on the interaction between the workpiece condition, machine rigidity, insert grade and geometry, cutting parameters, and target quality requirements. For wheel hub units and similar hardened components, selection should consider the following factors:
UHD is a supplier of ultrahard cutting tools and customized tooling solutions for precision metal cutting. For hardened steel finishing applications, UHD supports CBN insert selection, cutting-edge and geometry matching, process parameter evaluation, and non-standard tooling collaboration. The UPN306C05 wheel hub application demonstrates a practical approach to improving tool-life stability without changing an established machining cycle.
